Solid Core End Glow

3mm End Glow Cable

Core Material: PMMA
Core Diameter:3mm
Cable Diamter:5mm
Sheath Material: Transparent PVC
Product description: 3mm fiber optic solid core endglow cable consists of one large 2mm PMMA polymer fiber core surrounded by a UV stablized protective PE or PVC sheathing for mechanical protection. Mainly used for fiber
INQUIRY

PMMA Fiber Optic, also known as Plastic optical fiber (POF) ,Polymer Optical Fibre, is an optical fiber that is made of polymer. Similar to glass optical fiber, POF transmits light (for fiber optic lighting or data transmission) through the fiber core. Compared with traditional fiber optics , PMMA fiber optic has better bending radius and stretching.

Our solid core end glow fiber and cable consists of one large PMMA polymer fiber core jacketed by a UV stablized protective transparent PVC sheathing for mechanical protection. Mainly used for starry ceiling lighting, pool starry lighting, stage lighting, holiday lighting.

Solid Core end glow fiber optic Characteristics:

1. Safe, transmit light only, no conductivity or heat transferring;

2. Being able to transmit visible light but not ultraviolet or infrared;

3. Unique loose jacket adopted in the lighting series , easy to peel off,install and maintenance;

4. Good flexibility,stable performance, anti-aging, long life span;

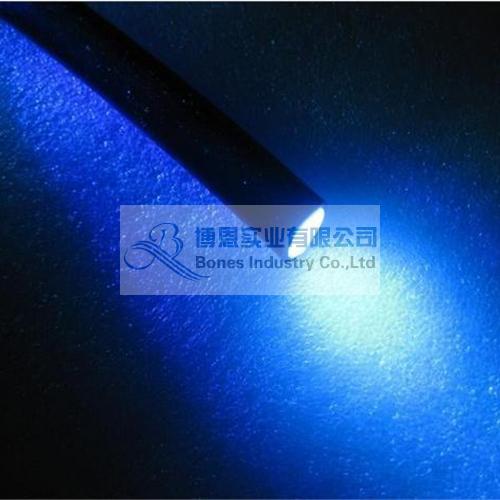

5. Strongest light effect at the end of the fiber;

6. Operating temperature: -20 ~ +70℃

7. Allowable bending radius：≥ ten times of the fiber diameter;

Solid Core end glow fiber optic Applications:

The fiber optic solid core end glow cables are mainly used for starry ceiling lighting, pool starry lighting, stage lighting, holiday lighting.

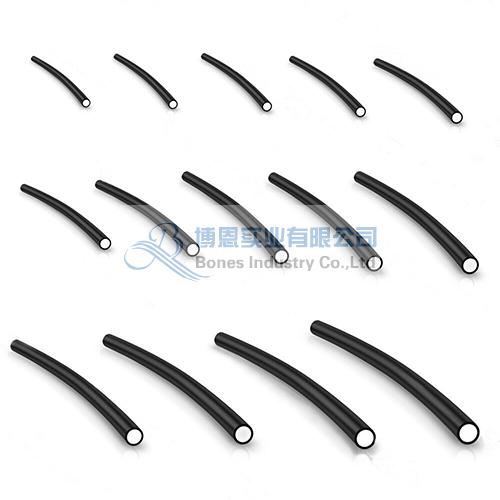

Solid Core end glow fiber optic Ordering Information:

P/N	Cable Diameter (mm)	Fiber Diameter (mm)	Packing	Carton Size (mm)	Sheath Material
GET-2	3.5	2	carton	500x500x300	Black PE
GET-2.5	4	2.5	carton	500x500x300	Black PE
GET-3	4.5	3	carton	500x500x300	Black PE
GET-6	8.8	6	carton	500x500x300	Black PE
GET-8	11	8	carton	500x500x300	Black PE
GET-10	13	10	carton	500x500x300	Black PE
GET-11	14	11	carton	500x500x300	Black PE
GET-12	14	12	carton	500x500x300	Black PE
GET-14	17.3	14	carton	500x500x300	Black PE
GET-16	18	16	carton	500x500x300	Black PE
GET-18	20	18	carton	500x500x300	Black PE
