End Glow Fiber

Industrial PMMA Fiber Spool

Core Material:PMMA
Type: end glow fiber
Core Diameter:0.75mm
Spool Length:100~1800m
Product description: 0.75mm industrial grade high performance PMMA plastic optical fiber in 200m spool from China polymer optical fiber factory and supplier.
INQUIRY

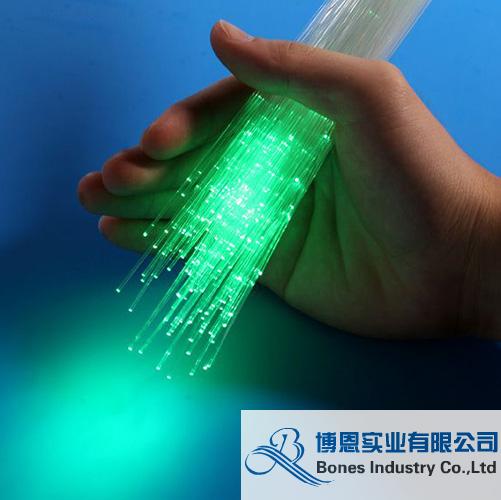

PMMA Fiber Optic, also known as Plastic optical fiber (POF) ,Polymer Optical Fibre, is an optical fiber that is made of polymer. Similar to glass optical fiber, POF transmits light (for fiber optic lighting or data transmission) through the fiber core. Compared with traditional fiber optics , PMMA fiber optic has better bending radius and stretching. Our LF series end glow PMMA Fiber diameter ranges from 0.25mm to 3.0mm.

PMMA Plastic Optical Fiber Characteristics:

1. Safe, transmit light only, no conductivity or heat transferring;

2. Being able to transmit visible light but not ultraviolet or infrared;

3. Easy installation and maintenance;

4. Good flexibility,stable performance, anti-aging, long life span;

5. Strongest light effect at the end of the fiber;

6. Operating temperature: -20 ~ +70℃

7. Allowable bending radius：≥ ten times of the fiber diameter;

PMMA Plastic Optical Fiber Applications:

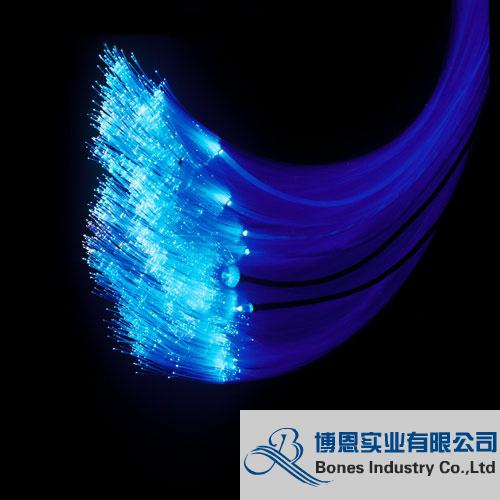

PMMA fiber optics are mainly used for fiber optic chandeliers, starry ceiling lighting, pool & spa lighting, stage lighting, holiday lighting etc. For all occasions. They are widely used in home,garden,hotels, nightclubs, municipal square, pools, caves, and any other places you want.

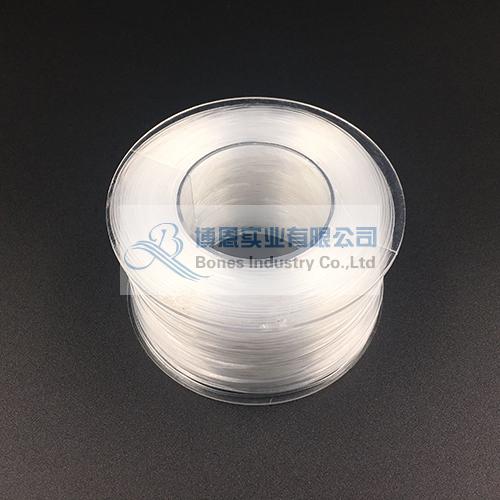

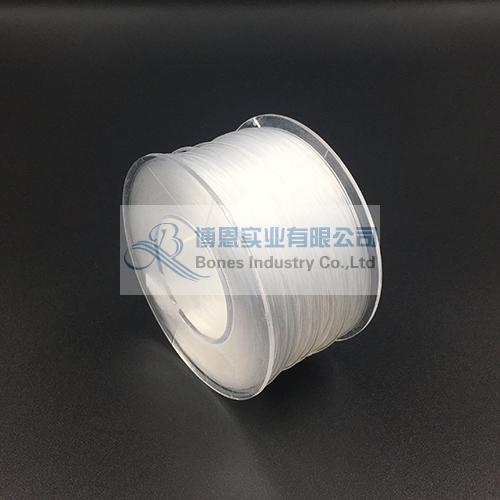

PMMA Plastic Optical Fiber on small plastic spool ordering information:

Part Number	Fiber Diameter	Spool Length	Attenuation	Application
Part Number	(mm)	(M)	(dB/M@650nm)	Application
LF-250	0.25	1800	≤0.35	Commercial Lighting
LF-500	0.50	400	≤0.30
LF-750	0.75	200	≤0.25
LF-1000	1.00	100	≤0.25
Part Number	Fiber Diameter	Spool Length	Attenuation	Application
Part Number	(mm)	(M)	(dB/M@650nm)	Application
LF2-750	0.75	200	≤0.20	1. Commercial Lighting 2. Consumer Electronics 3. Fiber Optic Sensor
LF2-1000	1.00	100	≤0.20
Part Number	Fiber Diameter	Spool Length	Attenuation	Application
Part Number	(mm)	(M)	(dB/M@650nm)	Application
CF2-500	0.50	400	≤0.20	1.Consumer Electronics 2. Fiber Optic Sensor 3. Industrial Control 4. Medical Imaging
CF2-750	0.75	200	≤0.18
CF2-1000	1.00	100	≤0.18

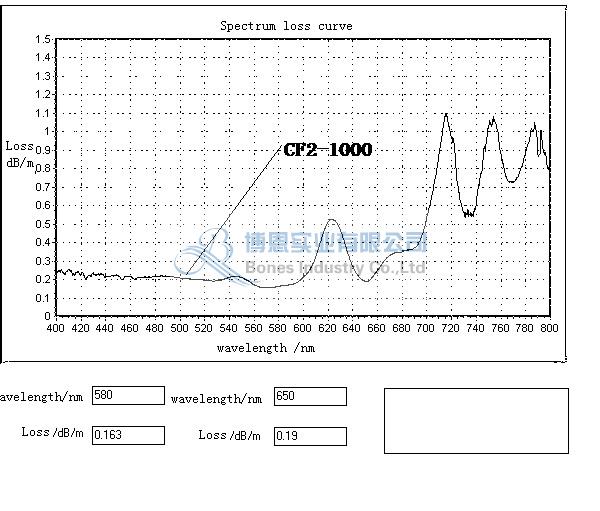

Compared with LF & LF2 Series Unjacketed PMMA Plastic Optical Fibers, the CF2 series Unjacked High-Performance Industrial Plastic Optical Fibers POF can work in harsh environment between temperature of -55~+85℃. And the CF2 series POF Fiber has a much lower attenuation loss at 650nm(about 0.18dB) . With these advantages,the CF2 Unjacked High-Performance Industrial Plastic Optical Fibers POF are widely used for Industrial control and data communication in harsh environment.
