Side Glow Fiber

  • 5mm Side Glow Cable
  • 5mm Side Glow Cable
  • 5mm Side Glow Cable
5mm Side Glow Cable5mm Side Glow Cable5mm Side Glow Cable

5mm Side Glow Cable

  • Core Material: PMMA
  • Core Diameter:3mm
  • Cable Diamter:5mm
  • Sheath Material: Transparent PVC
  • Product description: 5mm solid core side glow fiber optic lighting cable consists of one large 3mm PMMA polymer fiber core surrounded by a UV stablized protective PE or PVC sheathing for mechanical protection. Mainly used
  • INQUIRY

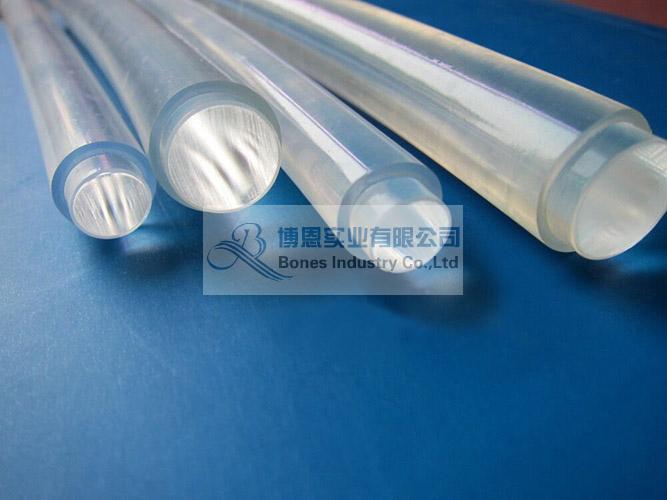

Our solid core side glow fiber optic has two types: solid core side glow fiber and solid core side glow cable. It is a single large diameter filament which can transmit light over reasonably long distances. Light is transmitted over the entire length of the solid core optic, without electricity or heat. By sheathing with transparent PVC cover, the fiber can be well protected and UV protection function is available.

Solid Core side glow fiber optic Characteristics:

1. Safe, transmit light only, no conductivity or heat transferring;

2. Being able to transmit visible light but not ultraviolet or infrared;

3. Unique loose jacket adopted in the lighting series , easy to peel off,install and maintenance;

4. Good flexibility,stable performance, anti-aging, long life span;

5. Longer transmission distance, up to 30meters;

6. Operating temperature: -20 ~ +70

7. Allowable bending radius:≥ ten times of the fiber diameter;



Solid Core side glow fiber optic Applications:

The solid core side glow fiber and cable are mainly Swimming Pool Lighting, Architectural Lighting, Landscape Lighting, Limo Lighting and any other places you can imagine.

Solid Core side glow fiber optic Ordering Information:

P/N

Outer Dia.

(mm)

Inner Dia.

(mm)

Packing

Carton Size

(mm)

Jacket/Sheath Material

GZT-2

2

2

carton

300x300x240

/

GZT-2.5

2.5

2.5

carton

300x300x240

/

GZT-3

3

3

carton

300x300x240

/

GZT-5

5

5

carton

300x300x240

/

GZT-6

6

6

carton

300x300x240

/

GZT-8

8

8

carton

300x300x240

/

GZT-10

10

10

carton

500x500x300

/

GZTGL-2

3.5

2

carton

500x500x300

Transparent PVC

GZTGL-2.5

4

2.5

carton

500x500x300

Transparent PVC

GZTGL-3

4.5

3

carton

500x500x300

Transparent PVC

GZTGL-6

8.8

6

carton

500x500x300

Transparent PVC

GZTGL-8

11

8

carton

500x500x300

Transparent PVC

GZTGL-10

13

10

carton

500x500x300

Transparent PVC

GZTGL-11

14

11

carton

500x500x300

Transparent PVC

GZTGL-12

14

12

carton

500x500x300

Transparent PVC

GZTGL-14

17.3

14

carton

500x500x300

Transparent PVC

GZTGL-16

18

16

carton

500x500x300

Transparent PVC

GZTGL-18

20

18

carton

500x500x300

Transparent PVC
