End Glow Fiber

  • 2mm Fibra Ottica Plastica
  • 2mm Fibra Ottica Plastica
  • 2mm Fibra Ottica Plastica
  • 2mm Fibra Ottica Plastica
  • 2mm Fibra Ottica Plastica
2mm Fibra Ottica Plastica2mm Fibra Ottica Plastica2mm Fibra Ottica Plastica2mm Fibra Ottica Plastica2mm Fibra Ottica Plastica

2mm Fibra Ottica Plastica

  • Core Material:PMMA
  • Type: end glow fiber
  • Core Diameter:2mm

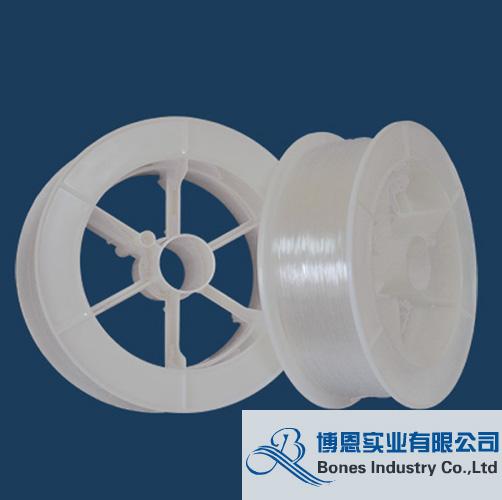

  • Roll Length:350m
  • Product description: 2mm end emitting fibra ottica,ifibra ottica di plastica pmma,fibra ottica in PMMA,fibre ottiche in PMMA,PMMA fiber optic bundle directly from China polymer fibra ottica factory and supplier.
  • INQUIRY

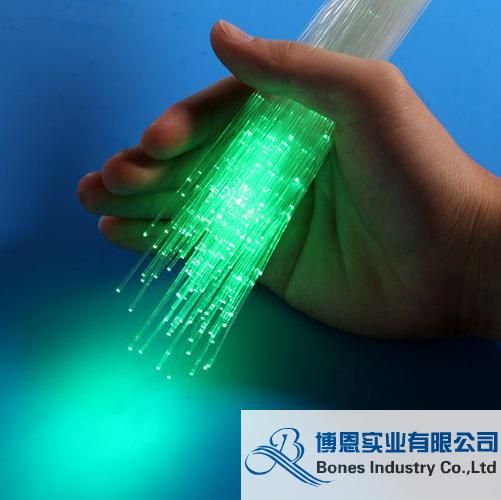

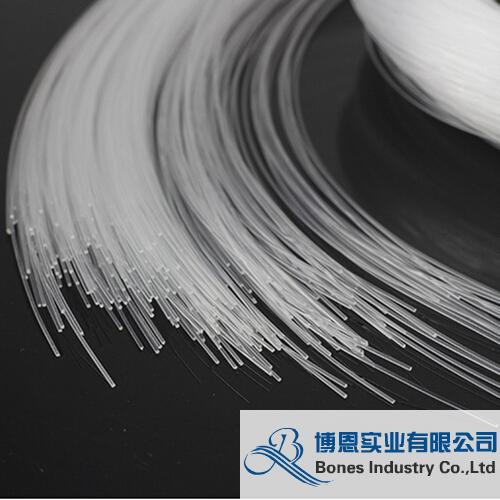

PMMA Fiber Optic, also known as Plastic optical fiber (POF) ,Polymer Optical Fibre, is an optical fiber that is made of polymer. Similar to glass optical fiber, POF transmits light (for fiber optic lighting or data transmission) through the fiber core. Compared with traditional fiber optics , PMMA fiber optic has better bending radius and stretching. Our LF series end glow PMMA Fiber diameter ranges from 0.25mm to 3.0mm.

PMMA Fiber Optic Characteristics:

1. Safe, transmit light only, no conductivity or heat transferring;

2. Being able to transmit visible light but not ultraviolet or infrared;

3. Easy installation and maintenance;

4. Good flexibility,stable performance, anti-aging, long life span;

5. Strongest light effect at the end of the fiber;

6. Operating temperature: -20 ~ +70

7. Allowable bending radius:≥ ten times of the fiber diameter;

PMMA Fiber Optic Applications:

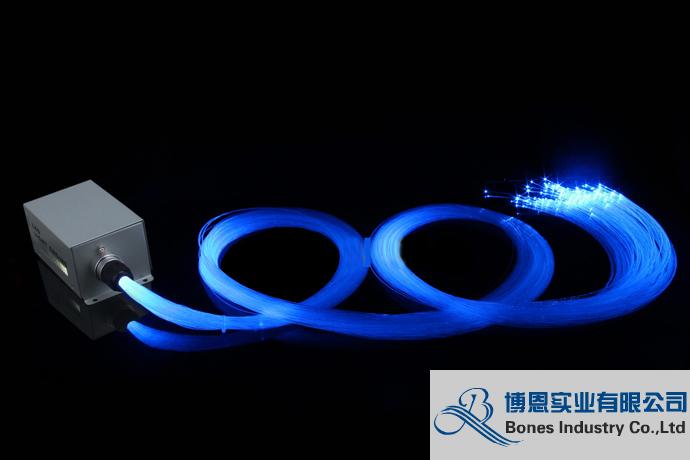

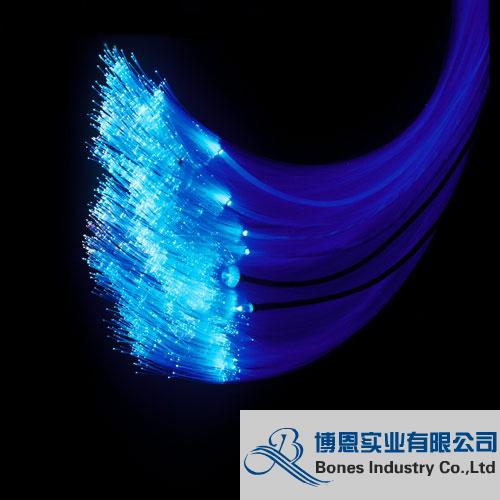

PMMA fiber optics are mainly used for fiber optic chandeliers, starry ceiling lighting, pool & spa lighting, stage lighting, holiday lighting etc. For all occasions. They are widely used in home,garden,hotels, nightclubs, municipal square, pools, caves, and any other places you want.

PMMA Fiber Optic Ordering Information:

Part Number

Diameter

(mm)

Attenuation
(dB/M)

Length

(m/Roll)

Carton Size

(mm)

Weight

LF-250

0.25

350

12000

290*110*290

2.5kg

LF-500

0.5

300

6000

290*110*290

2.5kg

LF-750

0.75

200

2700

290*110*290

2.5kg

LF-1000

1

200

1500

290*110*290

2.5kg

LF-1200

1.2

200

1000

290*110*290

2.5kg

LF-1500

1.5

200

700

290*110*290

2.5kg

LF-2000

2

200

350

290*110*290

2.5kg

LF-2500

2.5

200

200

400*80*390

2kg

LF-3000

3

200

150

400*80*390

1.5kg
