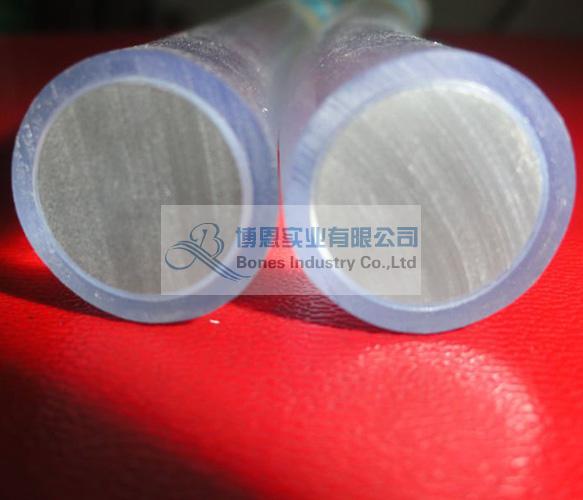

Solid Core Side Glow

13mm solid core cable

Core Material: PMMA
Core Diameter:13mm
Cable Diamter:14mm
Sheath Material: Transparent PVC
Product description: 13mm solid core side glow fiber optic filament consists of one large 10mm PMMA polymer fiber core surrounded by a UV stablized protective PE or PVC sheathing for mechanical protection. Mainly used for
INQUIRY

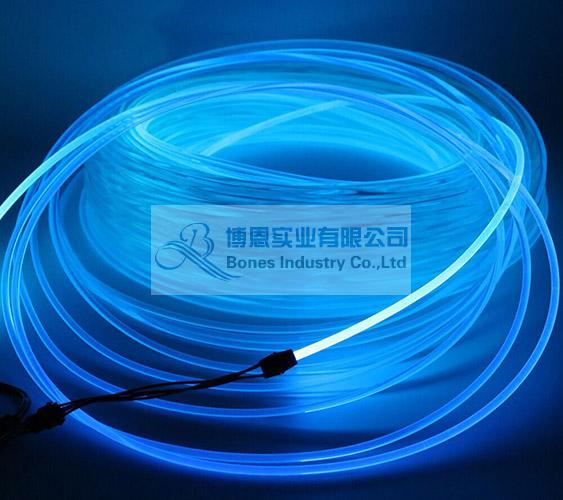

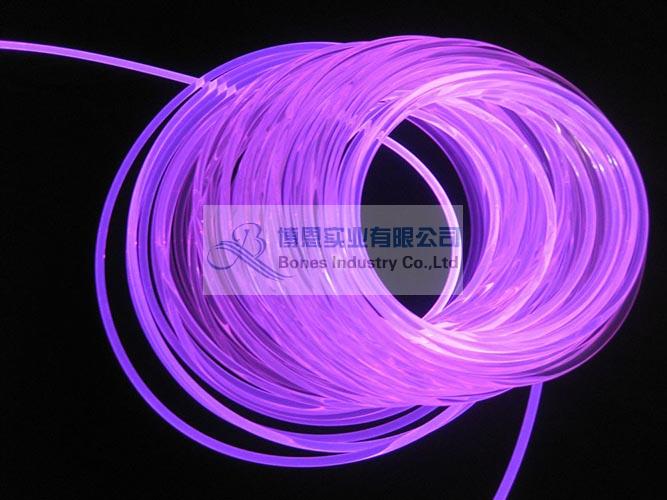

Our solid core side glow fiber optic has two types: solid core side glow fiber and solid core side glow cable. It is a single large diameter filament which can transmit light over reasonably long distances. Light is transmitted over the entire length of the solid core optic, without electricity or heat. By sheathing with transparent PVC cover, the fiber can be well protected and UV protection function is available.

Solid Core side glow fiber optic Filament Characteristics:

1. Safe, transmit light only, no conductivity or heat transferring;

2. Being able to transmit visible light but not ultraviolet or infrared;

3. Unique loose jacket adopted in the lighting series , easy to peel off,install and maintenance;

4. Good flexibility,stable performance, anti-aging, long life span;

5. Longer transmission distance, up to 30meters;

6. Operating temperature: -20 ~ +70℃

7. Allowable bending radius：≥ ten times of the fiber diameter;

Solid Core side glow fiber optic Filament Applications:

The solid core side glow fiber and cable are mainly Swimming Pool Lighting, Architectural Lighting, Landscape Lighting, Limo Lighting and any other places you can imagine.

Solid Core side glow fiber optic Filament Ordering Information:

P/N	Outer Dia. (mm)	Inner Dia. (mm)	Packing	Carton Size (mm)	Jacket/Sheath Material
GZT-2	2	2	carton	300x300x240	/
GZT-2.5	2.5	2.5	carton	300x300x240	/
GZT-3	3	3	carton	300x300x240	/
GZT-5	5	5	carton	300x300x240	/
GZT-6	6	6	carton	300x300x240	/
GZT-8	8	8	carton	300x300x240	/
GZT-10	10	10	carton	500x500x300	/
GZTGL-2	3.5	2	carton	500x500x300	Transparent PVC
GZTGL-2.5	4	2.5	carton	500x500x300	Transparent PVC
GZTGL-3	4.5	3	carton	500x500x300	Transparent PVC
GZTGL-6	8.8	6	carton	500x500x300	Transparent PVC
GZTGL-8	11	8	carton	500x500x300	Transparent PVC
GZTGL-10	13	10	carton	500x500x300	Transparent PVC
GZTGL-11	14	11	carton	500x500x300	Transparent PVC
GZTGL-12	14	12	carton	500x500x300	Transparent PVC
GZTGL-14	17.3	14	carton	500x500x300	Transparent PVC
GZTGL-16	18	16	carton	500x500x300	Transparent PVC
GZTGL-18	20	18	carton	500x500x300	Transparent PVC
