Side Sparkle Cable

3x0.75mm Sparkle Cable

Core Material: PMMA
Core Diameter:0.75mm
Spool Length:2700m
Dot Distance: 15, 30, 40mm or customized
Product description: 3strands 0.75mm Side Glow Sparkle PMMA fiber Optic lighting cable factory and supplier offering full range of side glow fiber optic sparkle cable,side light fiber optic sparkle cable and side emitting
INQUIRY

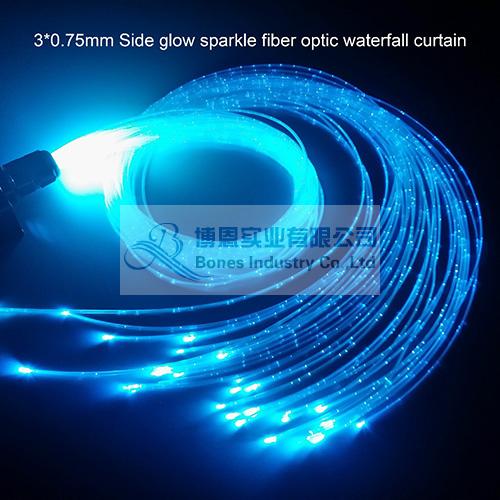

Side light sparkle fiber optic cable is an innovating fiber optic lighting product that uses side light sparkle fiber to achieve brilliant and distinctive sparkling effect without any noticeable reduction in the intensity of the light throughout entire length of PMMA fiber optic.

Its revolutionary design uses advanced LASER technology to cut the fibers along its length in regular distance(15mm, 30mm, 40mm)during the manufacturing process which results in an amazing ‘sparkle’ effect once the fiber is illuminated.

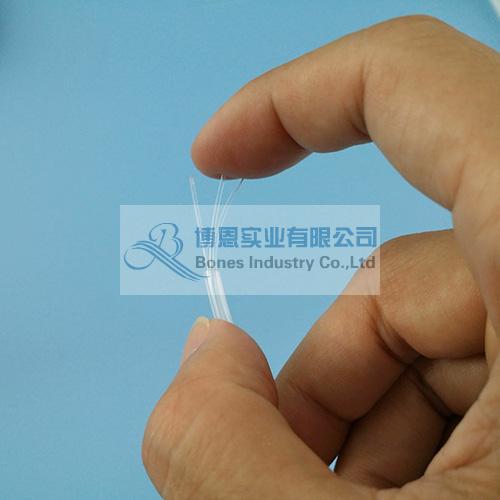

Each cable consists of single or multiple strands of 0.75mm side light sparkle fiber within a transparent PVC jacket to create fiber tail bundles in a variety of diameters for different type of sparkling effects. This side glow sparkle cable is suitable for both interior and exterior applications because the protective jacket is UV stabilized.

Structure:

Typical Applications:

• Chandeliers
• Lighting curtains/screens
• Window displays
• Feature lighting

Ordering Information:

Item	Part Number	Fiber Strands*Dia	Cable Dia. (mm)	Spool Length (m)	Remark
Side Light Sparkle Fiber	SF-750	1*0.75mm	N/A	2700	Bare Fiber
Side Light Sparkle Fiber	SF-1000	1*1.0mm	N/A	1500	Bare Fiber
Side Light Sparkle Cable	SCV-750-1	1*0.75mm	1.6	2700	Sheathed with UV stabilized clear PVC jacket
	SCV-750-3	3*0.75mm	3.0	450
	SCV-750-4	4*0.75mm	3.5	450
	SCV-750-7	7*0.75mm	4.0	450
	SCV2-750-1	1*0.75mm	1.6	2700
	SCV2-750-3	3*0.75mm	3.0	450
	SCV2-750-4	4*0.75mm	3.5	450
	SCV2-750-7	7*0.75mm	4.0	450
Note: 1. Regular dot marking distance: 15, 30, 40mm or customized; 2. Fiber strands can also be customized;
